2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface,

  • 2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface,
  • 2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface,
  • 2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface,
  • 2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface,
  • 2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface,
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX299001-40P
Minimum Order Quantity 500pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology IPS 2.99INCH BAR Tft Name Lcd Module
Size 2.99 " Resolution 268X800
Brightness 620cd/m2 Drive IC ST7701S
View Angle ALL Interface 40 Pins 3-WIRE SPI +18 BIT RGB
Highlight

2.99 Inch BAR Tft lcd module

,

Touch BAR Tft lcd module

,

268X800 BAR Tft module
Leave a Message
Product Description
ESHX299001-40P is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of2.99" contains 268 RGB X800 pixels and can display up to 16.7m colors.
For complete datasheet, pls download from this linkESHX299001C40.pdf


A: Product Parameter

LCD Number ESHX299001-40P
product size 2.99 inch tft display
view angle free
resolution 268X800
display mode IPS
interface 40 pins 3-WIRE SPI +18 BIT RGB
outline size 26.96X80X1.72MM
active area(mm) 24.12X72MM
Operating Temp: -20~70
driving IC ST7701S


B:Product Picture

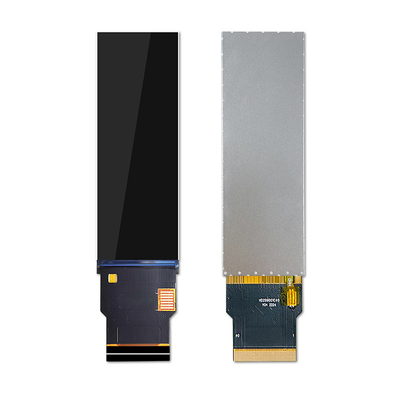

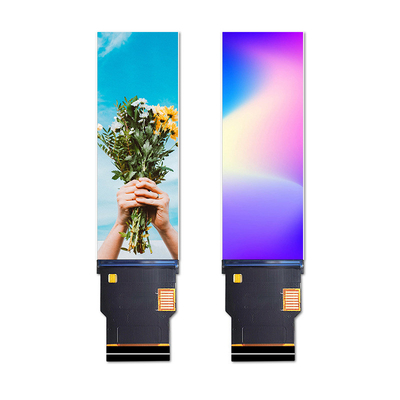

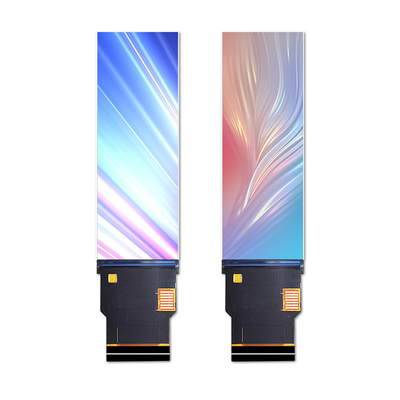

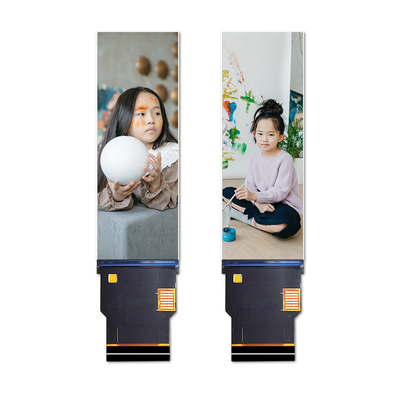

2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface, 02.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface, 12.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface, 22.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface, 3


C: Drawing


2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface, 4
2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface, 5


D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface, 6



TFT structure  as below

2.99 Inch Touch BAR Tft Lcd Resolution 268X800 40 Pins 3-WIRE SPI +18 BIT RGB Interface, 7




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut



Tags:

bar type display

bar TFT

bar type lcd
