5 Inch Transflective TFT LCD Display Module , 800x480 600c/D View Angle 6:00
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | ESHX05TSF-SB |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | Transflective Lcd Display | Name | TFT Display |
|---|---|---|---|
| Size | 5" | Resolution | 800x480 |
| Brightness | 600cd/m2 | View Angle | 6:00 |
| Interface | TTL | ||
| Highlight | TFT LCD transflective Display Module,5Inch TFT LCD Display Module,800x480 TFT Display LCD Module |
||
Product Description
ESHX05TSF-SB is a transflective type TFT-LCD module with super brightness which is sunlight readable. This module is composed of TFT-LCD panel, driver IC, FPC, and a back light unit. The module display area contains 800 x 480 pixels. This product accords with RoHS environmental criterion.
A:Product Parameter
| Part NO. | ESHX05TSF-SB | Unit |
| LCD Type | Normally White | / |
| Size | 5 | Inch |
| Viewing Direction | 6:00 (without image inversion) | O'Clock |
| Display Type | Transflective Type Display | / |
| LCD (W*H) | 120.7*75.8 | mm² |
| Active Area (W*H) | 108*64.8 | mm² |
| Dot Pitch (W*H) | 0.135*0.135 | mm² |
| Number of Dots (Pixels) | 800 (RGB)*480 | / |
| Driver IC | Source: HX8264 Gate: HX8664 | / |
| Backlight Type | 18LEDs | / |
| Surface Luminance | 600 (typical) | cd/m2 |
| Interface Type | TTL | / |
| Color Depth | 16.7M | / |
| Pixel Arrangement | RGB Vertical Stripe | / |
| Surface Treatment | AG | / |
| Input Voltage | 3.3 (typical) | V |
| WIth/Without Touch Panel | Optional | / |
| Weight | - | g |

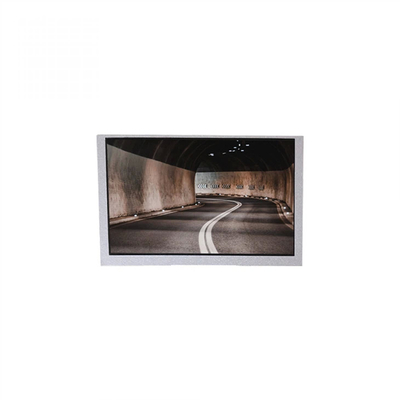

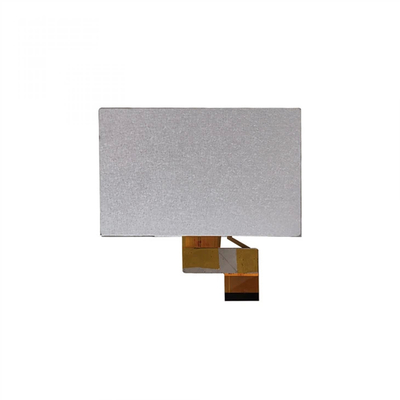

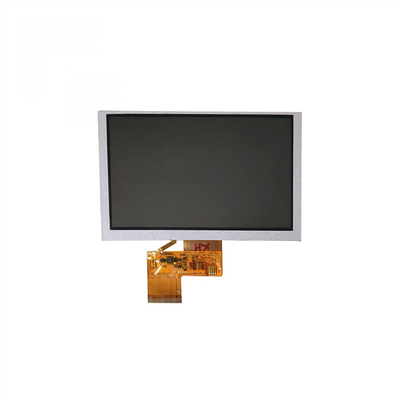

B:Product Picture
C:Drawing
...................................................................
