2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D

  • 2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D
  • 2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D
  • 2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D
  • 2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D
  • 2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX286003B0
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Module Name TFT Lcd
Size 2.86 Resolution 376*960
Brightness 600c/d Interface 40pins MIPI
View Angle ALL
Highlight

2.86 Inch Bar Type TFT Display

,

600c/D Bar Type TFT Display

,

376*960 Bar Type TFT Display
Leave a Message
Product Description

ESHX286003B0  is  2.86  inch bar type  TFT  display 376*960     resolution,  40pins MIPI    interface . brightness  is 600c/d and  view angle is all



A:Product Parameter

Part NO. ESHX286003B0
Display Type 2.86 inch tft display module
Resolution 376*960
Panel Size(mm) 31.2x76.6x2.05
Active Area (mm) 26.51x67.68
View direction all
interface 40pins MIPI
Brightness 600c/d
driving IC ST7701SN
Working temperature -20-70
Storage temperature -30-80

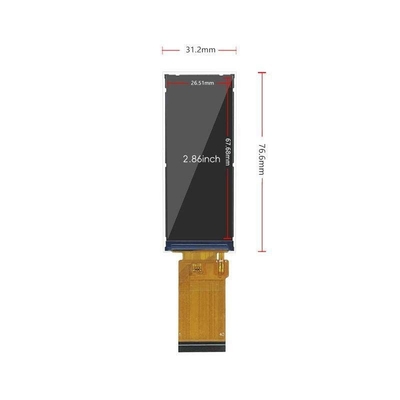

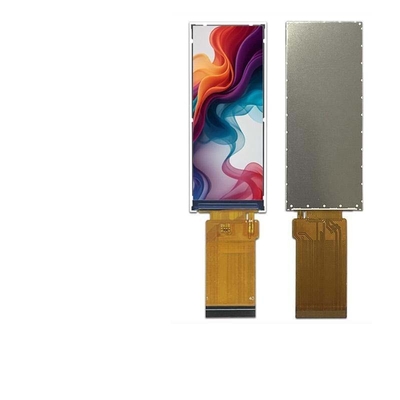

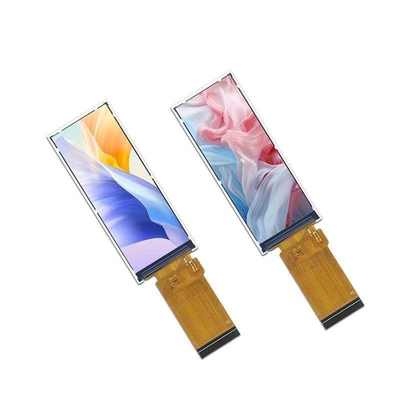

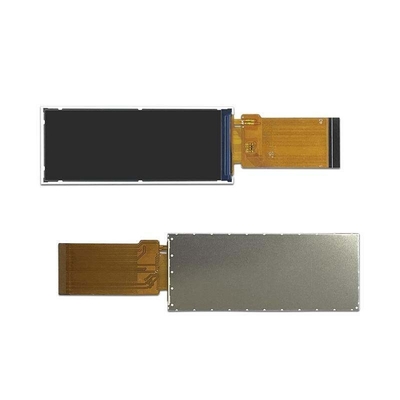

B: Product Picture



2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D 02.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D 12.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D 22.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D 3

C: Drawing



............................................





D: TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D 4



TFT structure as below

2.86 Inch Bar Type TFT Display 376*960 Resolution 40 Pins MIPI Interface 600c/D 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
