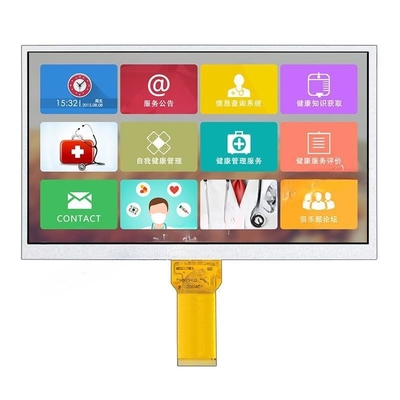

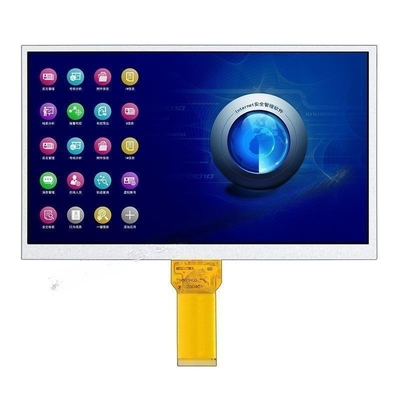

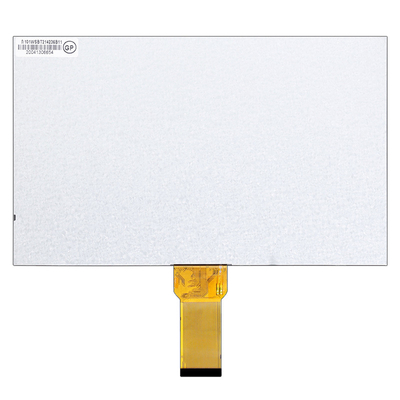

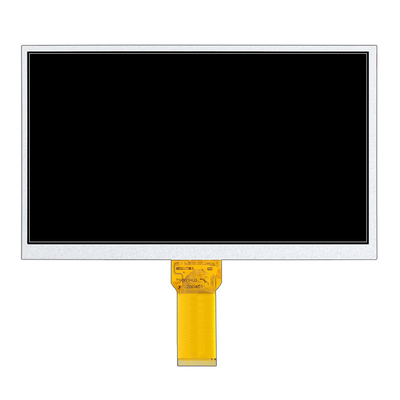

10.1 inch TFT display module, 1024X600 resolution,50 PINS RGB interface,380c/d

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX101-TNC40PG01-Z

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature 0~50℃,-20~70℃ View Angle ALL
Contrast Ratio 1000:1 Active Area 216.96(W)*135.6(H)mm
Luminance 300 (min),450 (Typ.) Display Type LCD
Viewing Angle 178 Degrees Number Of Dots 176*220
Highlight

50 PINS TFT display module

,

10.1 inch TFT display module

,

380c/d TFT display module

Leave a Message
Product Description

Product Description:

The LCD TFT Display is a thin film transistor monitor that offers a wide viewing angle, making it the perfect choice for both personal and professional use. Whether you're watching movies, playing games, or working on a project, this monitor will provide you with a sharp and clear image every time.

The Drive IC used in this monitor is the ST7789V3, which ensures fast and reliable performance at all times. This monitor is designed to operate at temperatures ranging from 0~50℃ to -20~70℃, making it suitable for use in a variety of environments.

This color TFT display monitor is perfect for use in a variety of settings, from homes to offices to retail stores. The LCD TFT Display is easy to set up and use, and its sleek design makes it a great addition to any workspace.

So why wait? Invest in the LCD TFT Display today and experience the benefits of a high-quality color LCD monitor for yourself!



Features:

  • Product Name: LCD TFT Display
  • Display Technology: LCD Display
  • Display Type: LCD
  • Touch Panel Ic: GT911
  • Number Of Dots: 176*220
  • Luminance: 300 (min),450 (Typ.)

This LCD TFT Display is an Active Matrix LCD Panel, also known as an LCD Thin Film Transistor Monitor or a Liquid Crystal Display Monitor. It offers a display technology of LCD and a display type of LCD. It comes with a GT911 Touch Panel Ic and has 176*220 Number Of Dots. The luminance ranges from a minimum of 300 to a typical value of 450.



Technical Parameters:

LCD Number
ESHX101-TNC40PG01-Z
product size 10.1 inch tft display
view angle 6:00
resolution 1024X600
interface 50 PINS RGB
outline size 235X143X5.2MM
active area 222.72X125.28MM
Operating Temp: -20~70
brightness 380c/d

This product is a Transparent Field Effect Screen, Liquid Crystal Display Monitor with an Active Matrix LCD Panel.



Applications:

The HuaXin LCD TFT Display is equipped with a GT911 touch panel IC, which allows you to interact with the screen in a seamless and intuitive manner. With this IC, you can use your fingers or a stylus to navigate through menus, scroll through content, and make selections with ease. This makes the display ideal for applications where user input is required, such as in kiosks, point-of-sale terminals, and other interactive systems.

Featuring a luminance of 300 (min) and 450 (typ.), the HuaXin LCD TFT Display is capable of producing bright and vivid colors that leap off the screen. This makes it perfect for use in environments with high ambient light, such as outdoors or in brightly-lit rooms. The display uses TFT technology, which is an active matrix LCD panel that provides superior image quality and response time compared to other LCD technologies.

The HuaXin LCD TFT Display is suitable for a wide range of applications and scenarios. It can be used in industrial automation systems, medical equipment, automotive displays, and consumer electronics. Its high resolution and superior image quality make it ideal for use in digital signage, advertising displays, and gaming consoles. It can also be used in portable devices such as smartphones and tablets, where its low power consumption and high brightness make it an ideal choice.

In conclusion, the HuaXin TFT-LCD Crystal Display Screen is a versatile and high-quality product that is designed to meet all your display needs. With its superior viewing angle, high resolution, and advanced touch panel IC, it is the perfect choice for any application that requires a high-quality display. So why wait? Order your HuaXin LCD TFT Display today and experience the best in display technology!
