1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01

  • 1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01
  • 1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01
  • 1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01
  • 1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01
  • 1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01
  • 1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX128P01-7P
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Uart Display Name Serial Port Screen
Size 1.28" Resolution 240x240
Brightness 300cd/m2 Interface TTL
Highlight

8 PINS SPI tft display module

,

1.28 inch tft display module

,

240x240 tft display module
Leave a Message
Product Description

ESHX128P01-7P   is  1.28 inch Uart tft  display 240x240 resolution 8 pins SPI  interface ,8N1 UART, CMOS/3.3V TTL,brightenss is 450nit

A: Product Parameter

LCD Number
ESHX128P01-7P
product size1.28 inch tft display
view angleFree
resolution
240*240
interface8PINS SPI
outline size36X44X2.75
active area32.4X32.4
Operating Temp:-20~70
brightness450c/d
driving ICGC9A01

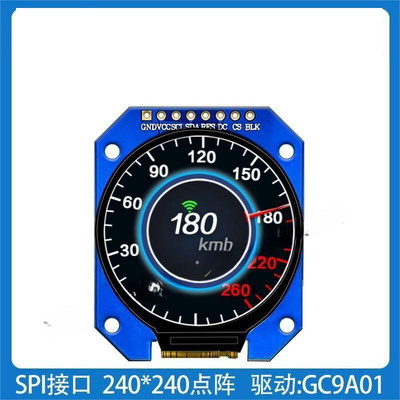

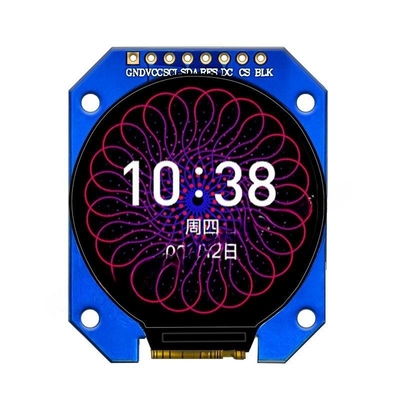

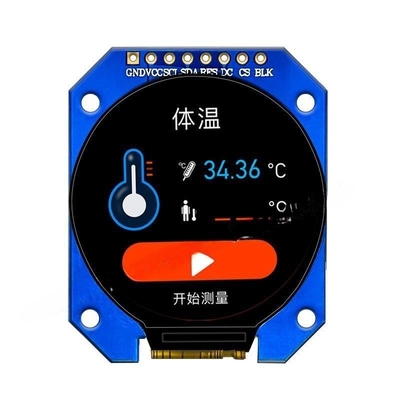

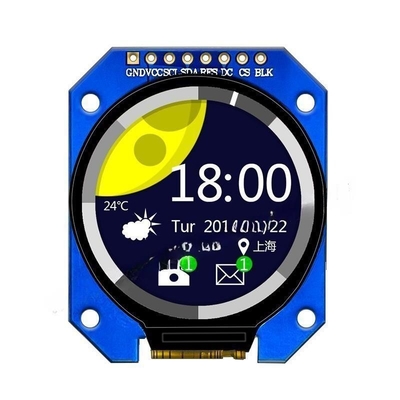

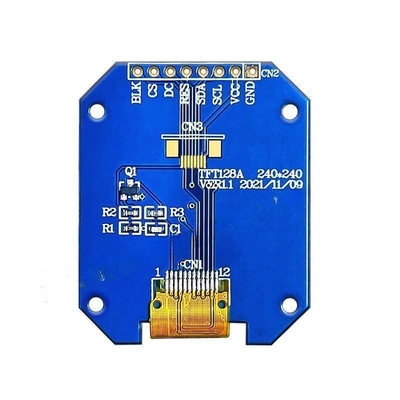

B: Product Picture
 1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01 01.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01 11.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01 21.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01 3
C:Drawing
.............................
D:TFT Product Knowledge

tft substrate input and CF substrate input flow chart as below

1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01 4

TFT structure as below
1.28 inch tft display module 240x240 resolution 8 PINS SPI driving IC GC9A01 5

E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
Capacity		2021 (Current)2022 (Goal)2023 (Challenge)2024 (Challenge)2025 (Challenge)Remark
LCD Producton
Capacity		4.59999Unit:thousands of
logarithms/Day
LCM Producton
Capacity		70150300450450Unit:Thousand
piece/Day
Backlight Producton
Capacity		100200300500500Unit:Thousand
piece/Day
OLED Producton
Capacity		1020304050Unit:Thousand
piece/Day



G: Product Application

1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance

H: TFT Display Characteristics

1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.

2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.

3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.

4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.

5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.

6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.

7.Wide Applications:

I: Are there any drawbacks or limitations to using TFT displays?

1. Limited Viewing Angles:
2. Limited Contrast Ratio
3. Backlighting and Power Consumption
4. Response Time and Motion Blur
5. Limited Flexibility
6. Limited Color Gamut
