8.4 inch TFT display module800*600 resolution LVDS 20PIN interface 350c/d
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHX084SDHG01-02 |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | Lcd Display | Name | Industrial Touch Monitor |
|---|---|---|---|
| Size | 8.4" | Resolution | 800x600 |
| Brightness | 350cd/m2 | View Angle | 12:00 |
| Interface | LVDS | ||
| Highlight | 8.4 inch TFT display module,800*600 resolution TFT display module,LVDS 20PIN interface TFT display module |
||
Product Description
ESHX084SDHG01-02 is 8.4 inch TFT display module, resolution is 800X600, LVDS interface, brightness is 500 c/d, view angle is 12:00
A:Product Parameter
| Part No: | ESHX084SDHG01-02 | unit |
| Size 尺寸 | 8.4 | inches |
| Resolution 分辨率 | 800*600 | |
| Active Area 显示区域 | 170.4*127.8 | mm |
| Outline dimension 外观尺寸 | 203*142.5*5.7 | mm |
| Color Depth 颜色 | 262k/16.7 M colors | |
| Display Mode 显示模式 | Normally White | |
| Surface treatment 表面处理 | AG | |
| Interface 接口 | LVDS 20PIN | |
| View Angles | 60/70/70/70 | |
| Viewing Direction | 12 o’clock | |
| Brightness 亮度 | 280min/350typ | Nits |
| Operating temperature 工作温度 | -20 ... +70 | °C |
| Storage temperature 储存温度 | -30 ... +80 | °C |
| Contrast ratio 对比度 | 400min/500typ |

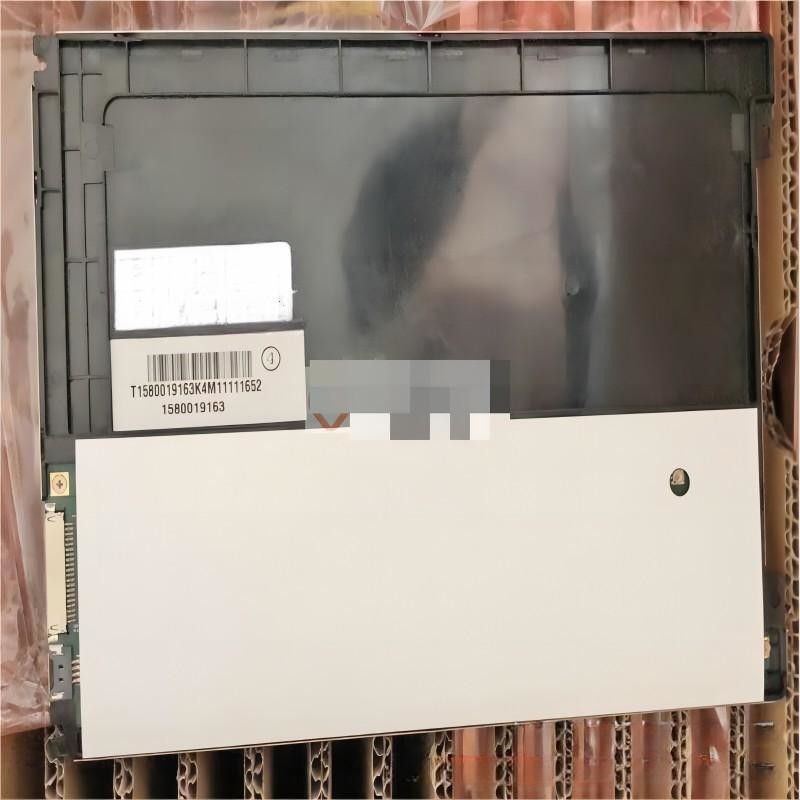

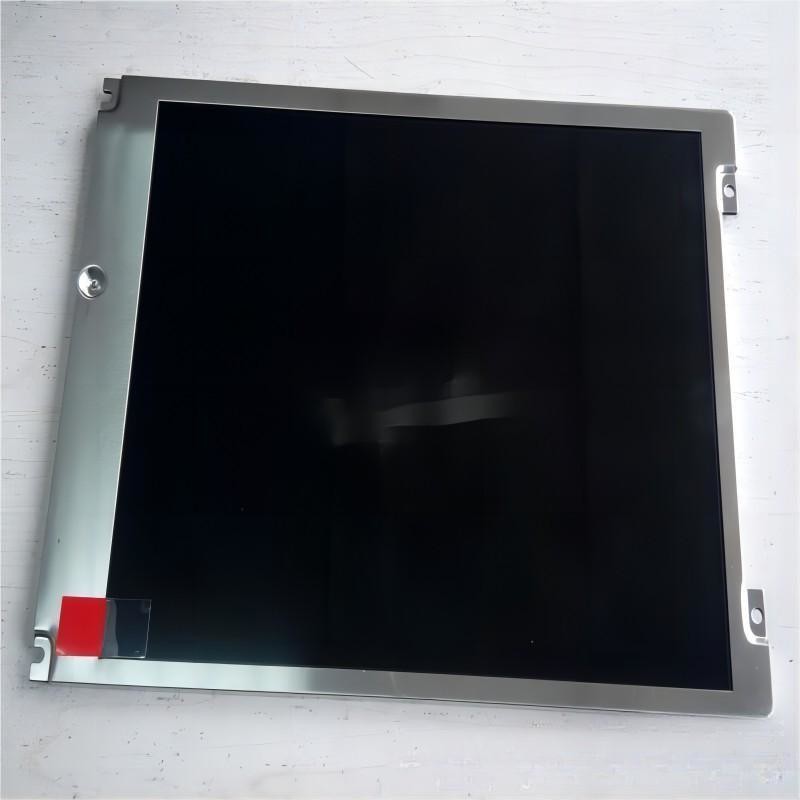

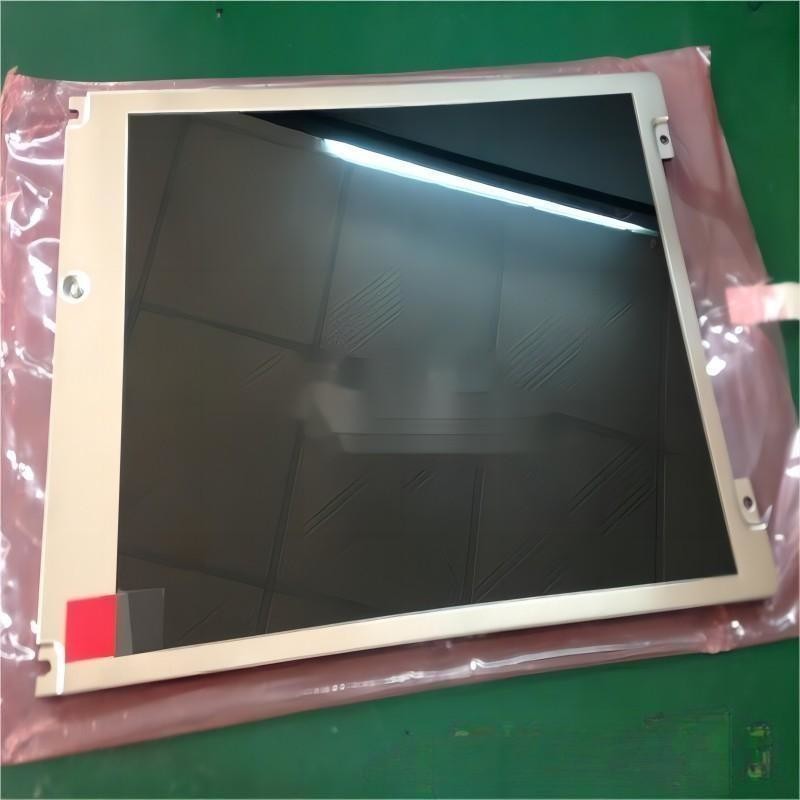

B:Product Picture
