Product Details
Display Technology LCD Display Name 2.0 Inch TFT
Size 2.0" Resolution 240x320
Brightness 450cd/m2 Interface MCU 8bit
Drive IC ST7789V View Angle Free View Angle
Highlight

2.0 inch LCD display

,

450 brightness LCD display

,

240*320 LCD display
Leave a Message
Product Description

ESHXT020001 V1.0-RF  is  2.0 inch 240*320 450 brightness, 22PIN plugging, Interface: MCU 8bit IPS LCD Screen, touch screen (Industrial, Home Appliances, Toys, Medical TFT LCD Display)





A. LCM Technical Parameters



ITEM STANDARD VALUES UNITS
LCD type 2.0’’TFT --
Dot arrangement 240(RGB)×320 dots
Color filter array RGB vertical stripe --
Display mode IPS / Transmission / Normally Black -
Eyes Viewing Direction 80/80/80/80 --
Driver IC ST7789V --
Module size 36.2(W)×51.8(H)×2.45(T)(Exclude FPC) mm
Active area 30.66(W)×40.8(H) mm
Interface MCU 8bit --
Operating temperature -20 ~ +70 °C
Storage temperature -30 ~ +80 °C
Back Light White LED*3 --
Brightness 450Cd/m2 --
Weight TBD --





B. LCM Optical Characteristics



Item Conditions Min. Typ. Max. Unit Note



Viewing Angle
(CR>10)



Horizontal

 θL - 80 -





degree





(1),(2),(6)
θR - 80 -



Vertical

 θT - 80 -
θB - 80 -
Contrast Ratio Center 640 800 - - (1),(3),(6)
Response Time Rising+Falling - 30 40 ms (1),(4),(6)







CF Color Chromaticity (CIE1931)

 Red x









Typ.
-0.05

 0.647









Typ.
+0.05

 -









(1), (6)
Red y 0.317 -
Green x 0.275 -
Green y 0.582 -
Blue x 0.140 -
Blue y 0.088 -
White x 0.310 -
White y 0.336 -
Color Gamut S(%) 54 60 - %





C. LED Backlight Characteristics



Item Symbol MIN TYP MAX UNIT Test Condition
Supply Voltage Vf - 3.2 - V If=60mA
Supply Current If - 60 - mA -
Luminous Intensity for LCM



-



-



450



-



cd/m2



If=60mA
Uniformity for LCM - - 70 - ％ If=60mA
Life Time - - 50000 - Hr If=40mA
Backlight Color

White







D. Product Picture

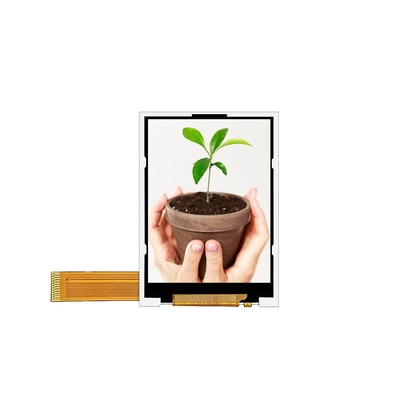

2.0 inch 240*320 450 brightness, 22PIN plugging, interface: MCU 8bit IPS LCD display can be equipped with touch 0

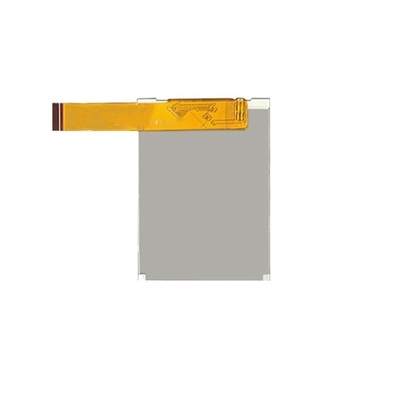

2.0 inch 240*320 450 brightness, 22PIN plugging, interface: MCU 8bit IPS LCD display can be equipped with touch 1





E. Drawing

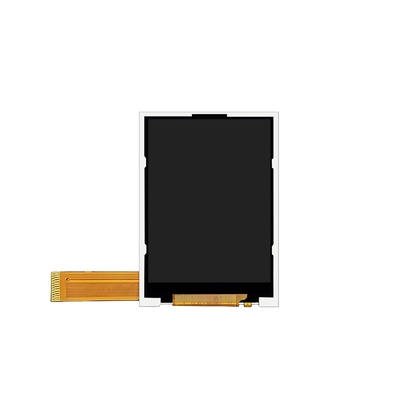

2.0 inch 240*320 450 brightness, 22PIN plugging, interface: MCU 8bit IPS LCD display can be equipped with touch 2




F: TFT Product  Knowledge





tft substrate input and CF substrate input flow chart as below


2.0 inch 240*320 450 brightness, 22PIN plugging, interface: MCU 8bit IPS LCD display can be equipped with touch 3



TFT structure  as below

2.0 inch 240*320 450 brightness, 22PIN plugging, interface: MCU 8bit IPS LCD display can be equipped with touch 4





G: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%





H: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





I: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance





J: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:





K: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
