1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver

  • 1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver
  • 1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver
  • 1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHXT017707 V1.0-RF
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology LCD Display Name 1.77 Inch TFT
Size 1.77" Resolution 128x160
Brightness 300cd/m2 Interface MCU8
Drive IC ST7735S View Angle Free View Angle
Highlight

1.77 inch LCD screen

,

300 brightness LCD screen

,

128*160 LCD screen
Leave a Message
Product Description

ESHXT017707 V1.0-RF  is  1.77 inch LCD screen, resolution of 128*160 300 brightness 20PIN plugged MCU8bit ST7735S driver, can be equipped with touch screen (suitable for industrial, military, home appliances, toys, medical TFT LCD display)





A. Technical parameters



ITEM STANDARD VALUES UNITS
LCD type 1.77TFT --
Dot arrangement 128(RGB)×160 dots
Color filter array RGB vertical stripe --
Display mode TN/ Transmission / Normally White -
Eyes Viewing Direction 12 O’CLOCK --
Driver IC ST7735S --
Module size 34(W)×43.7(H)×2.50(T)(Exclude FPC) mm
Active area 28.03(W)×35.04(H) mm
Interface MCU8 --
Operating temperature -20 ~ +70 °C
Storage temperature -30 ~ +80 °C
Back Light White LED*2

--







B. LED Backlight Characteristics



Item

Symbol

MIN

TYP

MAX

UNIT

Test Condition

Supply Voltage

Vf

2.8

3

3.2

V

If=40mA

Supply Current

If

-

40

-

mA

-

Luminous Intensity for LCM



-



-



TBD



-



cd/m2



If=40mA

Uniformity for LCM

-

-

60

-

％

If=40mA

Life Time

-

-

50000

-

Hr

If=40mA

Backlight Color

White

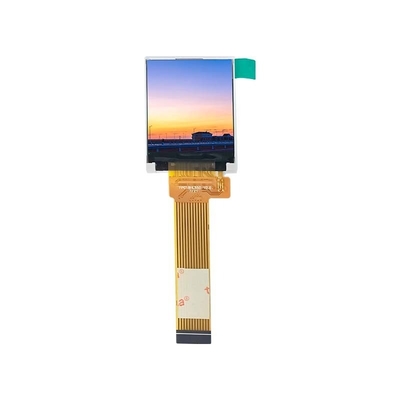

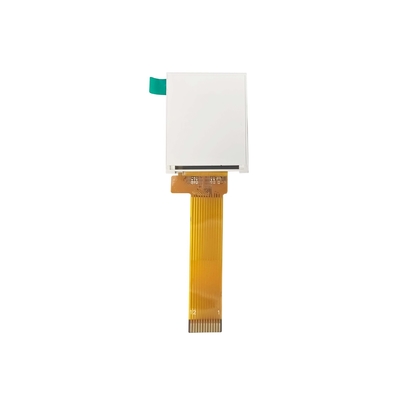

C. Product Picture



1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver 0

1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver 1







D. Drawing



1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver 2






E: TFT Product  Knowledge





tft substrate input and CF substrate input flow chart as below


1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver 3



TFT structure  as below

1.77 Inch LCD Screen Resolution 128*160 300 Brightness 20PIN Plugged MCU8bit ST7735S Driver 4





F: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%





G: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





H: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance





I: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:





J: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
