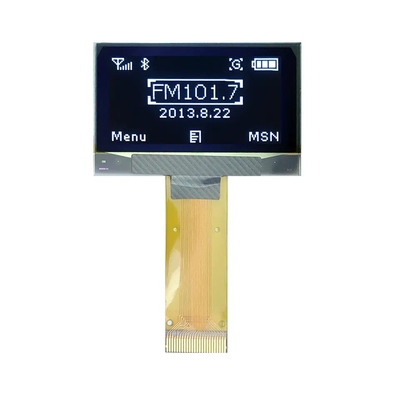

1.54 Inch Graphic OLED Display Module Attractive White-on-black Display Resolution 128x64 Pixels

ESHXHYPO154-W-T009-RF is a versatile 1.54-inch graphic OLED display module manufactured by SWI. It offers an attractive white display with a resolution of 128x64 pixels. The module utilizes the efficient SSD1309Z controller IC and supports Parallel, 4-wire SPI, and I2C interfaces for seamless communication.

As an OLED display, it operates without a backlight, resulting in lower power consumption. This feature enhances contrast, widens the viewing angle, and ensures reliable performance across different temperatures.

The module's FPC is designed with a FPC-connector type, allowing easy and direct connection to the ZIF connector on your PCB. This simplifies the integration process and ensures a secure and dependable connection.

The SWI HYPO154-W-T009 is compatible with various MCUs such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This adaptability makes it suitable for a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, and handheld devices.

Shineworld Innovations Limited offers customization options for the display solution, including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution tailored to their specific needs and preferences. Additionally, if required, Shineworld Innovations Limited can also provide customized demo kits for customers.

A:Product Parameter

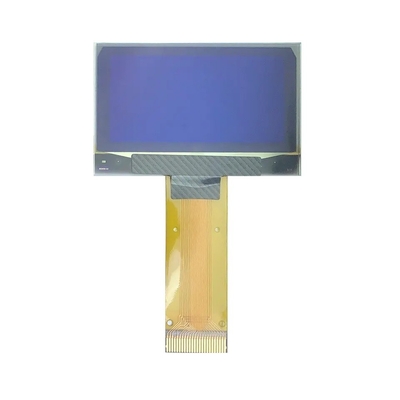

B:Product Picture

C:Drawing

D:Oled Product Knowledge

OLED Advantages:

OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption

OLED Disadvantages

AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module

• Huaxin Technology (Enshi)Co.,LTD
• Hubei.Enshi
• Date of foundation:2009
• high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
• LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
• LCM includes: COB,TBA, COG,TP,LED backlight and other series
• register capital:twenty million
• current staff:500+
• RD accounts for 10%
• QC accounts for 15%

F: Production Capacity

G: Product Application

1.Wearable Devices

2. Portable Audio Players

3. Thermostats and Home Automation Devices

4. Car Dashboards and Instrument Clusters

5. Medical Device

6.Consumer Electronics

7. Industrial and Professional equipment

H:PMOLED Characteristics

1.Display Structure: PMOLED displays consist of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns. Each OLED acts as a single pixel and emits light independently.

2.Passive Matrix: PMOLEDs use a passive matrix addressing scheme, where each row and column intersection in the display matrix is controlled by a driving circuit. This circuit applies voltage to the selected pixels to activate them.

3. High Contrast and Color Saturation:PMOLED displays offer high contrast ratios and vibrant colors. Since each pixel emits its own light, PMOLEDs can achieve deep blacks and vibrant colors without the need for a backlight.

4. Power Efficiency: PMOLED displays are generally power-efficient. They consume power only for the pixels that are active, as OLED emit light when a voltage is applied to them. In contrast, LCD displays require a backlight that consumes constant power regardless of the content being displayed.

5.Thin and Flexible: PMOLED displays are relatively thin and can be manufactured on flexible substrates. This makes them suitable for applications where flexibility or bendability is desired, such as curved displays or wearable devices.

6. Limited Resolution and Size: PMOLED technology has certain limitations compared to other display technologies. PMOLED displays are typically limited in resolution, and their pixel densities are lower compared to active matrix OLED (AMOLED) or LCD displays. Additionally, PMOLED displays are more suitable for smaller-sized screens due to manufacturing constraints.

7.Screen Persistence: PMOLED displays are susceptible to a phenomenon called screen persistence or burn-in, where prolonged display of static images can result in image retention or permanent damage to the display. However, etc

I: What are the advantages of AMOLED displays compared to PMOLED displays?

1.Higher Resolution:

2. Better Color Reproduction

3. Faster Refresh Rates

4. Improved Power Efficiency :

5. Larger Screen Sizes:

6. Flexibility and Curved Displays:
