40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display

  • 40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display
  • 40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display
  • 40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display
  • 40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display
  • 40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display
  • 40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX4303-480272TBBIG01-RF
Minimum Order Quantity 50pcs
Price US$3.8-4.1/PCS
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology LCD Display Name 4.3 Inch TFT
Size 4.3" Brightness 500cd/m2
Resolution 480*272 Interface Parallel RGB 24-Bit
Outline Dimensions 105.5*67.2*3.0mm LCD Active Area 95.04*53.86 Mm
View Angle Free View Angle
Highlight

24-Bit Interface LCD Display

,

4.3 Inch LCD Display

,

480*RGB*272 TFT Transmissive RGB
Leave a Message
Product Description

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display





A. Basic Info.



Model NO.
ESHX4303-480272TBBIG01-RF
Optimum Resolution
480*272
Type
TFT
Response Time
25ms
3D
Not 3D
Interface Type
Parallel RGB 24-Bit
Viewing Angle
6 O′clock
Outline Dimensions
105.5*67.2*3.0mm
Active Area
95.04*53.86mm
Driver IC
Nv3047
LCD Type
TFT Transmissive
Backlight Type
7 Chips White LEDs
Input Voltage
3.3V
Luminance
500 CD/M^2
Touch Panel
Optional
Operating Temp
-20°c~+70°c
Storage Temp
-30°c~+80°c
Number of Pins
40 Pin
Transport Package
Carton
Specification
438*386*348mm
Trademark
HuaXin
Origin
China

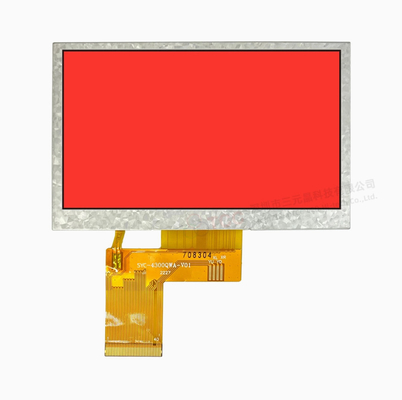

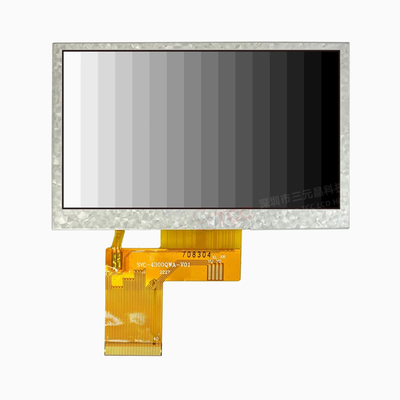

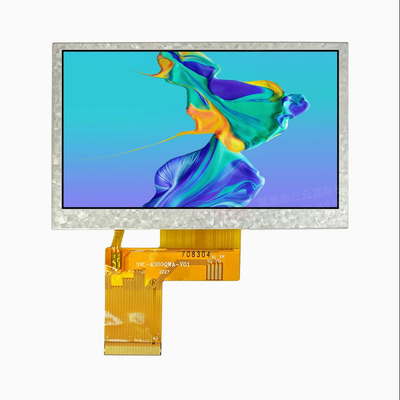

B. Product Picture

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 040 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 140 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 240 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 340 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 4



C:Product Description

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 5


D: TFT Product  Knowledge





tft substrate input and CF substrate input flow chart as below


40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 6



TFT structure  as below

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 7





E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 8

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 940 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 10

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 1140 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 12

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 1340 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 14

40 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 1540 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 1640 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 1740 Pin 480*RGB*272 TFT Transmissive RGB 24-Bit Interface 500 Bright 4.3 Inch LCD Display 18

F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance





H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:





I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
