2024 New Factory 29.5 Inch Ultra Thin Mini LED Square LCD Monitor Display For Digital Picture Frame Art Exhibition
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | ESHX29501-MiniTBBIG01-RF |
| Minimum Order Quantity | 50pcs |
| Price | US$650-1450/Piece |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 700 000 Pieces/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | Mini LED Square LCD Monitor Display | Name | 29.5 Inch Ultra Thin Mini LED Square LCD Monitor Display |
|---|---|---|---|
| Size | 29.5" | Optimum Resolution | 3840x2160 |
| Active Area | 529.42*529.42mm | Outline Size (mm)(H*V*B) | 553*553*22mm |
| Screen Technology | LCD | Certificate | CE, RoHS,ISO9001 |
| Highlight | Mini LED LCD Monitor Display,Ultra Thin LCD Monitor Display,29.5 Inch LCD Monitor Display |
||
Product Description
Industrial 3.0 Inch TFT LCD Display 240X400 RGB Interface Optional Capacitive or Resistive Touch Screen
A. Basic Info.
|
Model NO.
29.5 Inch
Feature
Touch Display, LED Backlight Display, With Remote Control, Support TV Function, 3D Display
Optimum Resolution
3840x2160
Type
TFT
Widescreen
Not Widescreen
Response Time
2ms
3D
3D
Interface Type
HDMI
Size
29.5 Inch
Brightness
400
Power Consumption
45W
Resolution
2160*2160
AA Size (mm)(H*V)
529.42*529.42mm
Outline Size (mm)(H*V*B)
553*553*22mm
Contrast
10000000:1
Screen Technology
LCD
Panel Type
a-Si TFT-LCD
Touch Screen
Support Touch Function
Language
Support Multi Language
Operation System
Android
Color
Support Custom
Remote Control
Can with Remote Control
Certificate
CE, RoHS,ISO9001
Transport Package
Bubble Bag+Carton Box
Specification
29.5 Inch
Trademark
HeadSun
Origin
China
Production Capacity
700 000 Pieces/Month
|
B.Product Description
1. Mini LED backlight, ultra-thin cob structure, high contrast 100000:1.
2. Blue light quantum dot film, high color gamut, 4k display effect, high brightness 800nit.
3. Low reflectivity within 0.5%.
4. High-configuration Qualcomm 8550 chip, 512+16GB memory.
5. The frame is ultra-thin with a thickness of 22mm.

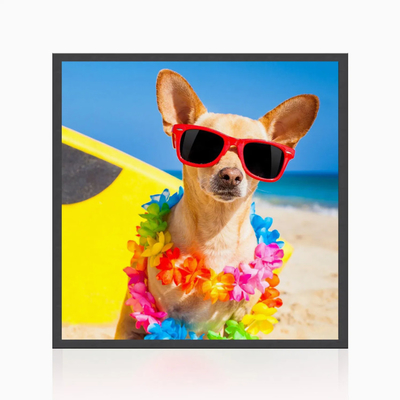

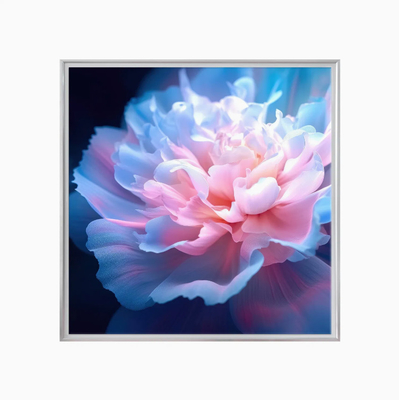

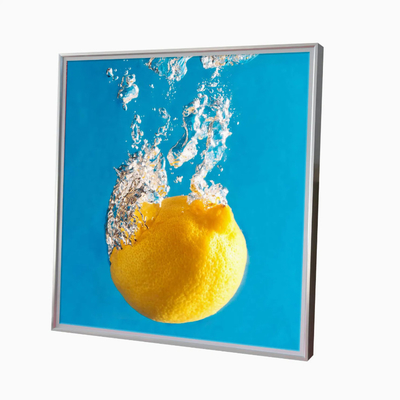

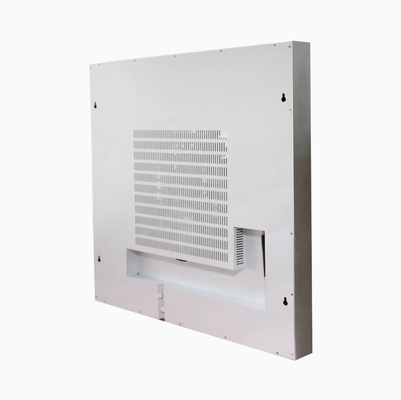

C. Product Picture
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production Capacity
| Annual Production Capacity |
2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark | ||
| LCD Producton Capacity |
4.5 | 9 | 9 | 9 | 9 | Unit:thousands of logarithms/Day |
||
| LCM Producton Capacity |
70 | 150 | 300 | 450 | 450 | Unit:Thousand piece/Day |
||
| Backlight Producton Capacity |
100 | 200 | 300 | 500 | 500 | Unit:Thousand piece/Day |
||
| OLED Producton Capacity |
10 | 20 | 30 | 40 | 50 | Unit:Thousand piece/Day |
||
G: Product Application
1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance
H: TFT Display Characteristics
1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.
4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.
6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.
7.Wide Applications:
I: Are there any drawbacks or limitations to using TFT displays?
1. Limited Viewing Angles:
2. Limited Contrast Ratio
3. Backlighting and Power Consumption
4. Response Time and Motion Blur
5. Limited Flexibility
6. Limited Color Gamut
