3.5 Inch Resolution 320X240 MCU 16 Bit Parallel Interface Driver IC SSD2119 Landscape Type LCD Display Module
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | ESHX3505-320240TBBIG01-RF |
| Minimum Order Quantity | 1000pcs |
| Price | US$18/PCS |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | LCD Display | Name | 3.5 Inch TFT |
|---|---|---|---|
| Size | 3.5" | Resolution(pixels) | 320(RGB)×240 (Qvga) |
| Outline Size | 76.9 × 63.9 × 3.3 (H×V×d) | Active Display Area(mm) | 70.08 × 52.56 (H×V) |
| Highlight | 320X240 LCD Display Module,3.5 Inch LCD Display Module |
||
Product Description
3.5 Inch Resolution 320X240 MCU 16 Bit Parallel Interface Driver IC SSD2119 Landscape Type LCD Display Module
A. Basic Info.
| Model NO. | ESHX3505-320240TBBIG01-RF | Viewing Angle | TN＋FILM |
| Display Technology | TFT | Customized | ------ |
| Screen Size | 3.5 Inch | Display Type | Tn |
| Resolution | 320(RGB)×240 (Qvga) | Module Size | 76.9 × 63.9 × 3.3 (H×V×d) |
| Active Area | 70.08 × 52.56 (H×V) | Brightness | 350 CD/M² (Typ.) |
| Backlight | 3s2p Wled , 20K Hours , No Driver | Interface | MCU 16bit, FPC 30pin,Pitch:1.0mm |
| Specification | Rohs | Trademark | HuaXin |
| Number of Pins | 24 Pin | Transport Package | Carton |
| Production Capacity | 500000PCS Per Month | Origin | DongGuan, China |
B.Product Description

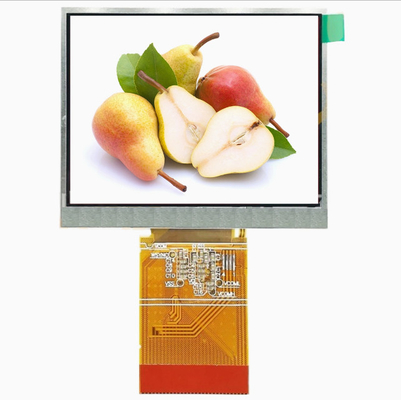

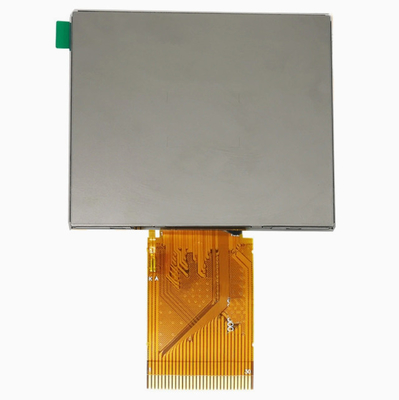

C. Product Picture
D:drawing
E: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
