14.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel

  • 14.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel
  • 14.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel
  • 14.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel
  • 14.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHXC145HAX01
Minimum Order Quantity 1000pcs
Price Negotiated
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology High Resolution TFT Name Bar Type TFT
Size 14.5“ Display Type IPS
Interface LVDS Touch Panel Incell Touch Panel
Resolution 2560RGB(H)×720(V)
Highlight

14.5 inch Bar Type Display

,

LVDS Bar Type Display

,

2560X720 Bar Type Display
Leave a Message
Product Description

ESHXC145HAX01 is 14.5 inch bar type TFT display,2560RGB(H)×720(V) dots, free view angle. LVDS interface, incell touch ,350C/d





A:Product Parameter

Part No: ESHXC145HAX01
display Mode 14.5 inch bar type TFT module
outline size(mm) 364(H)×113(V)×3.0
AA size(mm) 354.816(H)×99.792(V)
Display dots 2560RGB(H)×720(V)
View Angle all
interface LVDS
Brightness 350C/d
working temp -20~60
storage temp -25~70
Touch Panel in cell touch

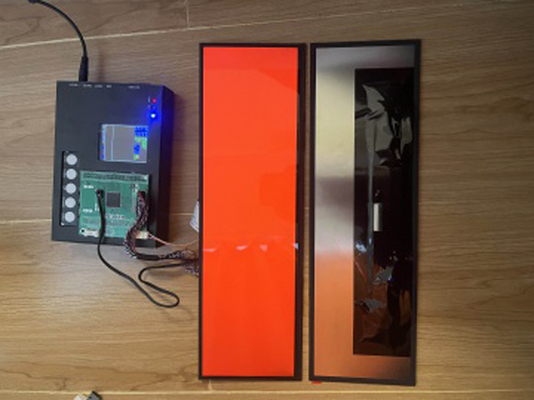

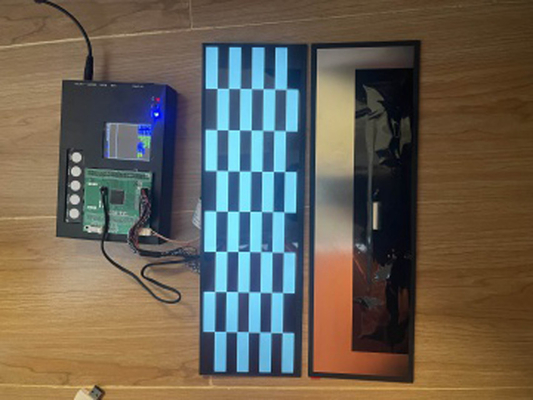

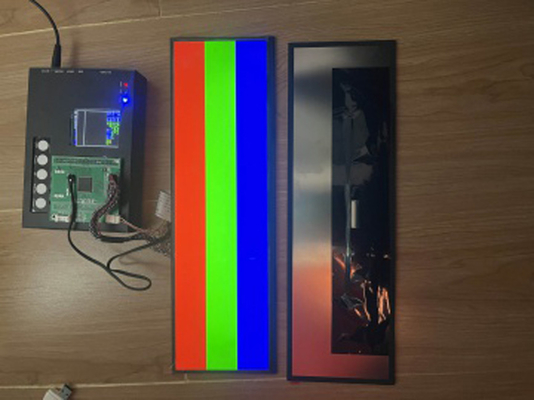

B:Product Picture

14.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel 014.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel 114.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel 214.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel 3





C: Drawing




D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


14.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel 4



TFT structure  as below

14.5 Inch Bar Type Display 2560X720 Resolution LVDS Interface Incell Touch Panel 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
