3.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P

  • 3.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P
  • 3.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P
  • 3.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P
  • 3.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO13485/ISO9001/IATF16949
Model Number ESHX035Z6M-N80-2HPO
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Lcd Module Name Round Lcd
Size 3.5" Resolution 480*480
Brightness 450cd/m2 Drive IC St7701S-G5-P
View Angle Free View Angle
Highlight

3.5 Inch Round TFT Display Module

,

480x480 Round TFT Display Module
Leave a Message
Product Description

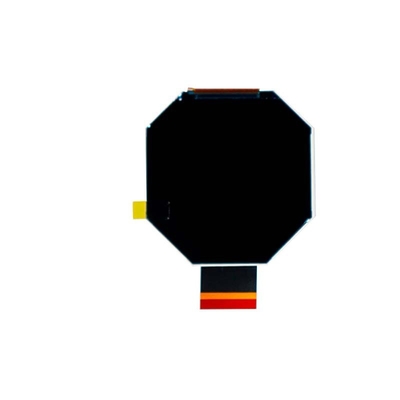

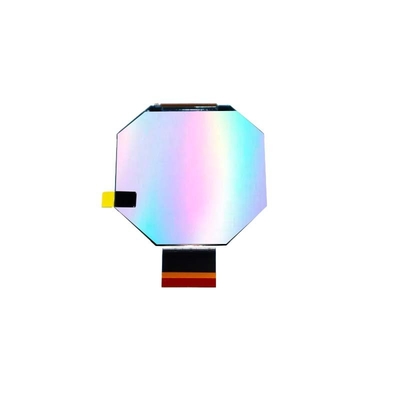

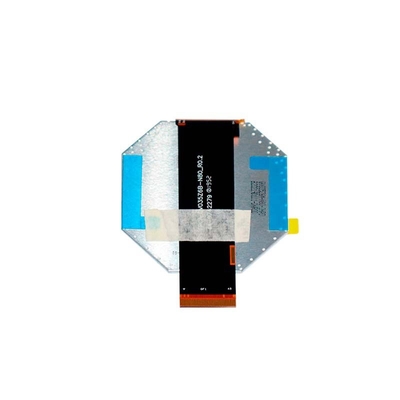

ESHX035Z6M-N80-2HPO  is 3.5 inch tft  round display module,  480*480 dots , 450c/d brightness , driving ic st7701S-G5-P





A. Product Parameter

Part No: ESHX035Z6M-N80-2HPO
display Mode 3.5 inch round TFT display
outline size(mm) 69.19x71.74x2.45
AA size(mm) 62.64x62.64
Display dots 480*480
View Angle all
Brightness 450c/d
Driver IC st7701S-G5-P




B.Product Picture

3.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P 03.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P 13.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P 23.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P 33.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P 4








C. Drawing






D. TFT product  knowledge

tft substrate input and CF substrate input flow chart as below


3.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P 5



TFT structure  as below

3.5 Inch Round TFT Display Module , 480x480 Resolution, 450c/D Driving IC St7701S-G5-P 6
