132 Segment Dot Matrix LCD Module, FSTN Transflective Positive 48 Common Outputs
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHX13248FZ0001-LCM-C |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Mode | FSTN/ TRANSFLECTIVE/Positive,REFLECTIVE,POSITIVE | Name | 132 Segment Output/ 48 Common Outputs |
|---|---|---|---|
| DUTY | 1/49 | BIAS | 1/6 |
| VOP | 5.0V | ||
| Highlight | 132 segment dot matrix lcd module,dot matrix lcd module FSTN,Transflective dot matrix lcd |
||
You can tick the products you need and communicate with us in the message board.
| DISPLAY TPYE | FSTN | |
|---|---|---|
| DISPLAY MODE | POSITIVE | |
| POLARIZA MODE | TRANSFLECTIVE | |
| VIEW DIRECTION | 12 | |
| DUTY | 1/49 | |
| BAIS | 1/6 | |
| VOP | 7.4 |
Product Description
ESHX13248FZ000-LCM-C is Dot Matrix LCD, driving method is 1/49 duty,1/6 bias,VOP=7.4V, display mode isTRANSFLECTIVE,POSITVE,ASSEMBLY TYPE isFOG+BL,12PINS, view angle is 12:00
A: Product Parameter
| LCD Number | ESHX13248FZ0001-LCM-C |
| display mode | FSTN/ TRANSFLECTIVE/Positive |
| Driver output circuits | 132 segment output/ 48 common outputs |
| Applicable Duty Ratios | 1/49 Duty |
| On-chip Display Data RAM | Capacity: 6 5 × 132 = 8580 bits |
| Microprocessor Interface | 4W-SPI interface |
| On-chip Low Power Analog Circuit | On-chip oscillator circuit |
| Voltage follower | (LCD bias : 1/6) |
| MODULE SIZE(MM) | 67×38.0×4.4mm |
| View Area | 63×25.5mm |
| Display type | 128*48 |
| Drive method | 1/49 duty,1/9 bias,VOP=5.0V |
| drive IC | Aip31567 |
| View Direction | 12 O’Clock |
| PIN 'QTY | 12PIN |
| ASSEMBLY TYPE | FOG+BL |
| Backlight color | white |
| Operation Temp. | -20~+50℃ |
| Storage Temp. | -30~+60℃ |

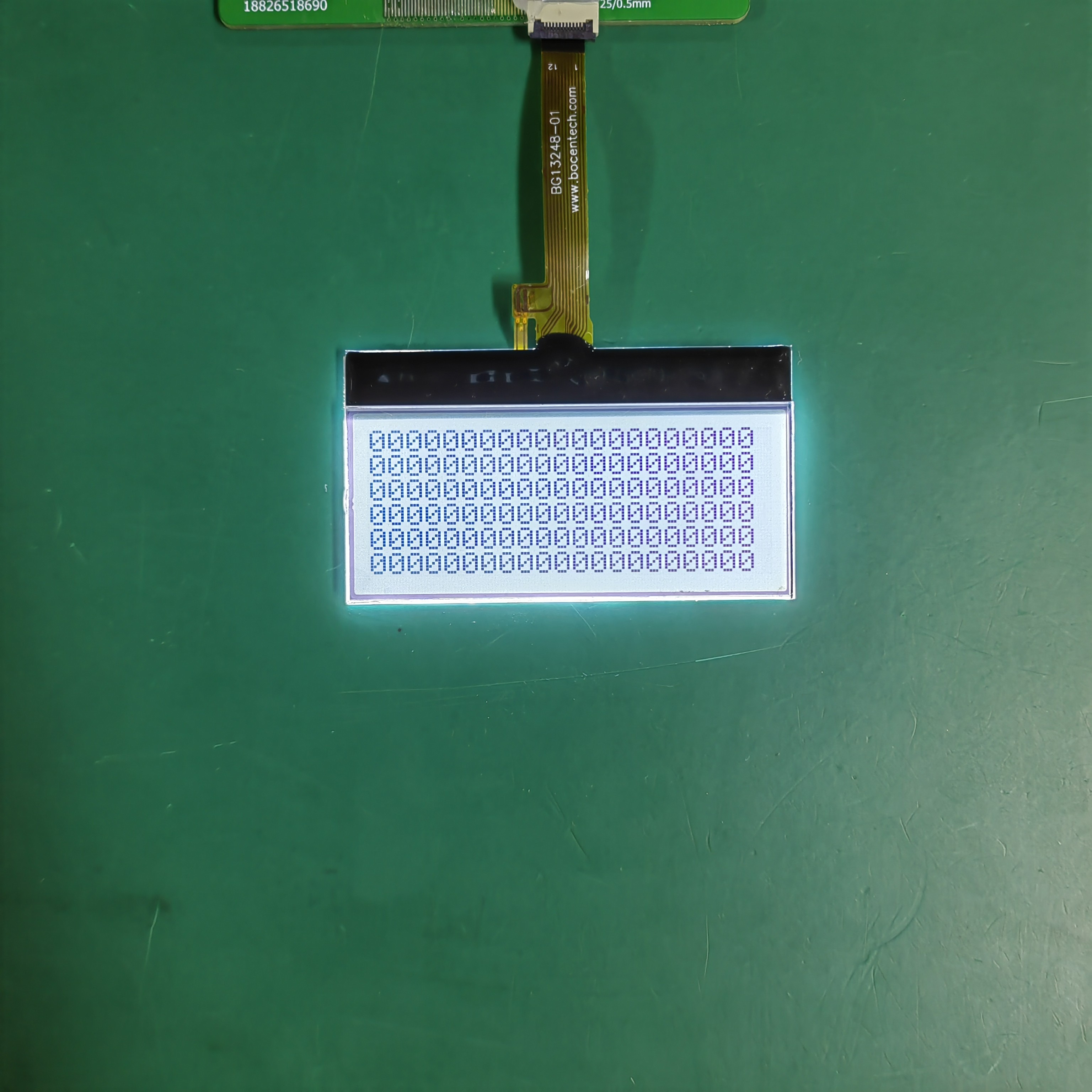

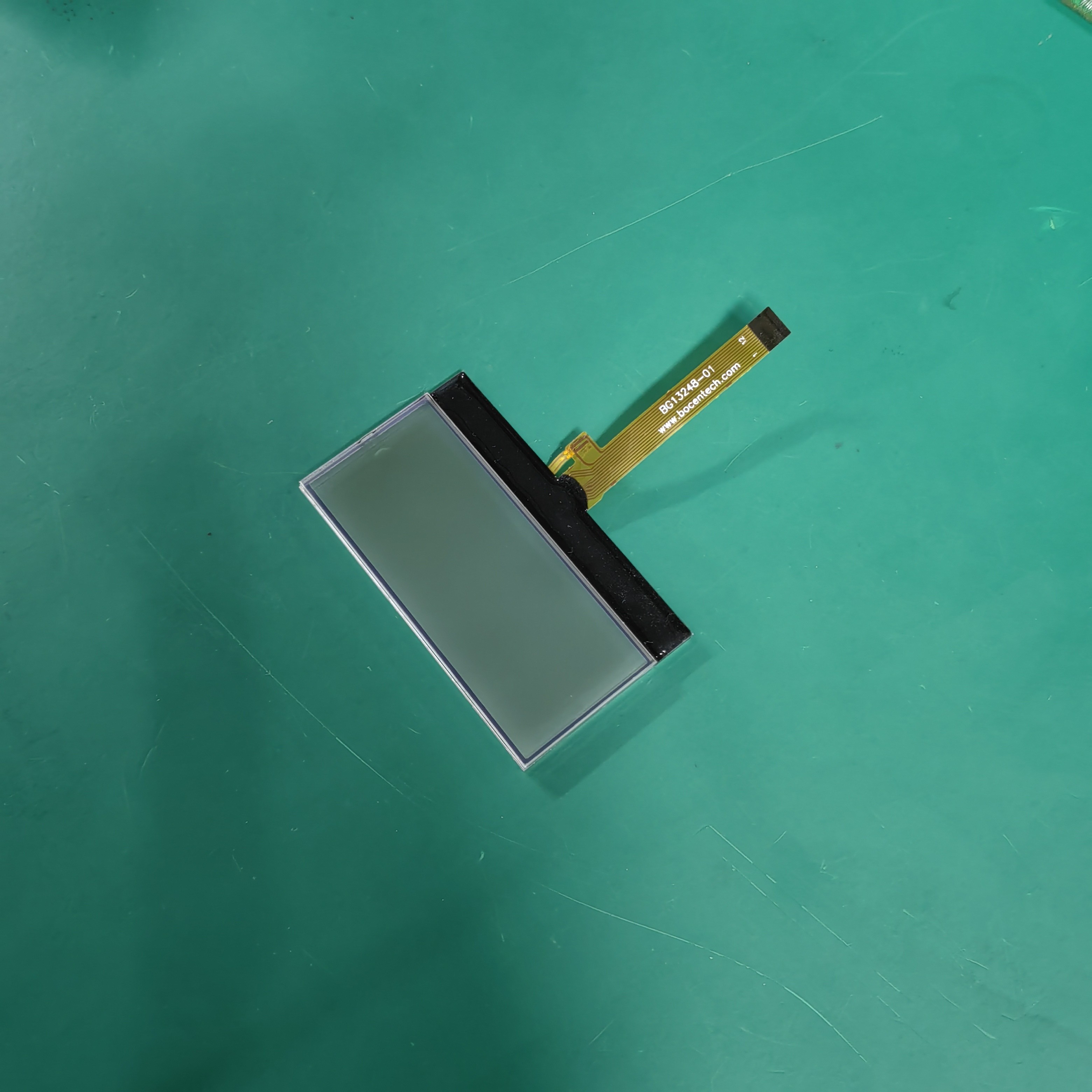

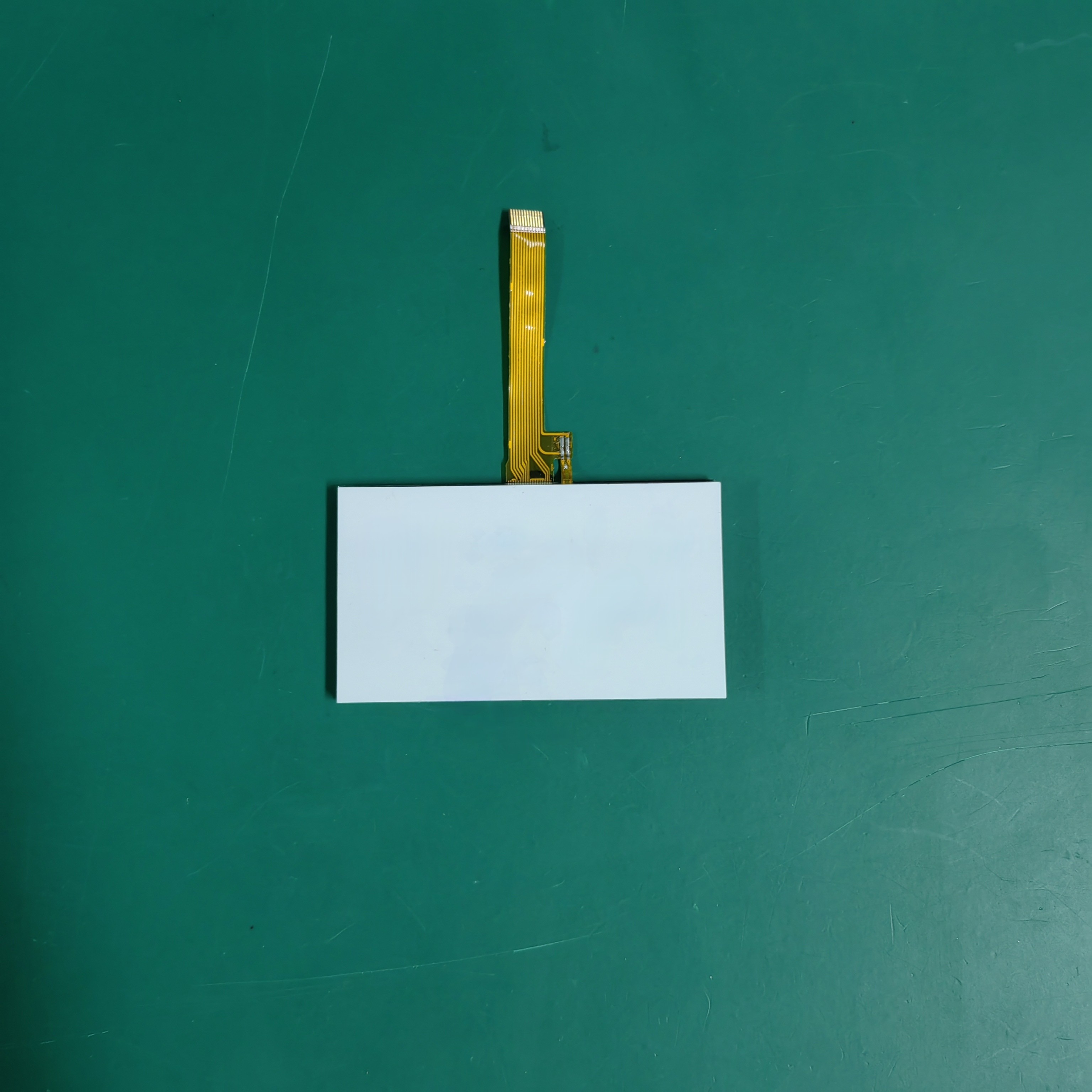

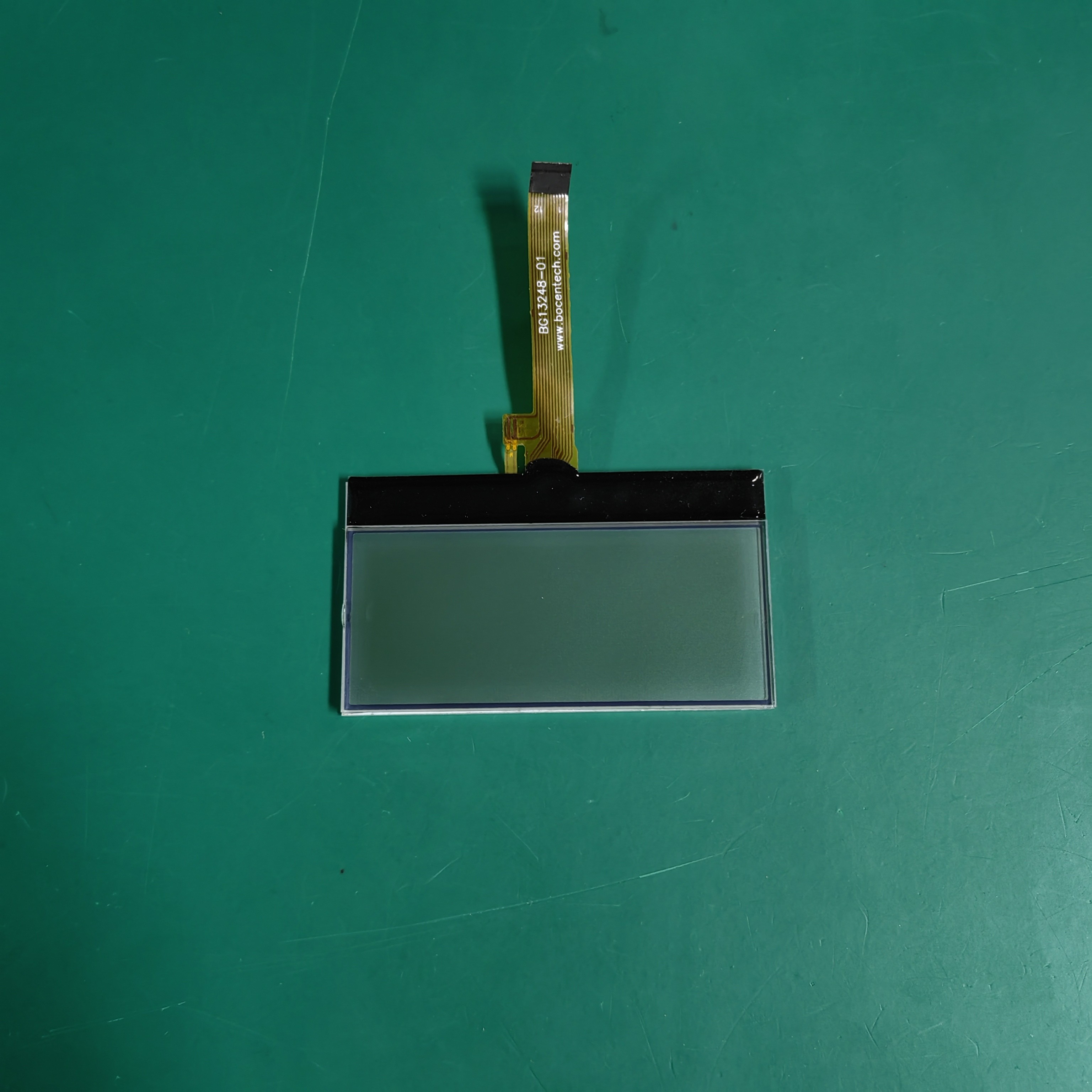

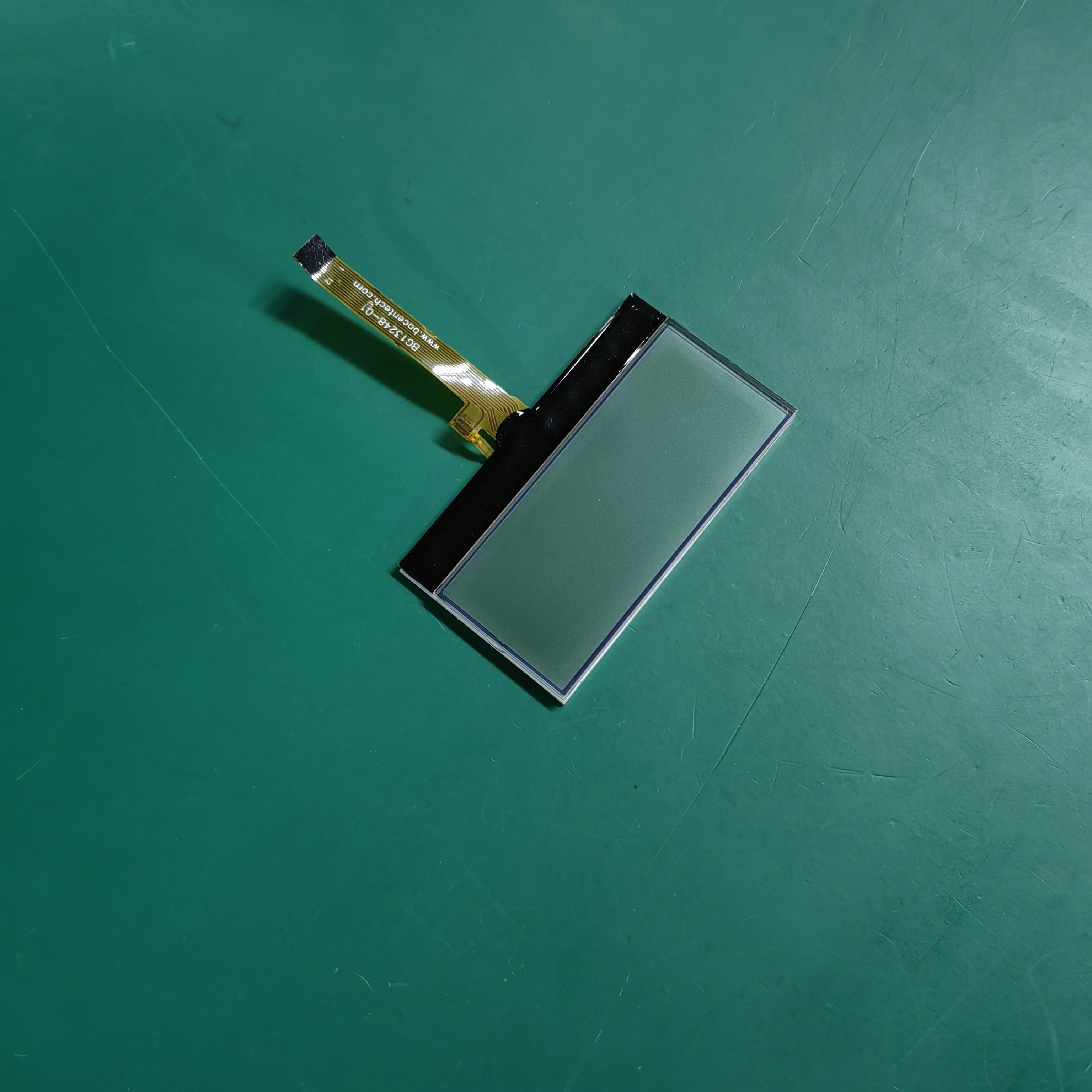

B: Product Picture
C:Drawing
D: LCD Product Knowledge
LCD advantage
Tooling charge and unit price are much cheaper than TFT and oled.
LCD Disadvantages
LCD is cutomized but TFT and oled lcd size are standard one , LCD is mono and narrow view angle .lower contrast ratio
E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production Capacity
| Annual Production Capacity |
2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark | ||
| LCD Producton Capacity |
4.5 | 9 | 9 | 9 | 9 | Unit:thousands of logarithms/Day |
||
| LCM Producton Capacity |
70 | 150 | 300 | 450 | 450 | Unit:Thousand piece/Day |
||
| Backlight Producton Capacity |
100 | 200 | 300 | 500 | 500 | Unit:Thousand piece/Day |
||
| OLED Producton Capacity |
10 | 20 | 30 | 40 | 50 | Unit:Thousand piece/Day |
||
G: Product Application
1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance
H: Mono LCD Display Characteristics
1.Display Type: MONO LCD is a type of liquid crystal display that can only produce images in a single color, typically black and white or grayscale.
2.Pixel Structure: MONO LCDs have a simple pixel structure with a single light-modulating element per pixel, as opposed to the more complex RGB (Red-Green-Blue) pixel structure of color LCDs.
3.Contrast and Brightness: MONO LCDs generally have higher contrast ratios and can achieve higher brightness levels compared to color LCDs, as they do not require color filters or backlighting.
4.Power Consumption: MONO LCDs typically have lower power consumption compared to color LCDs, making them suitable for battery-powered applications.
5.Response Time: MONO LCDs often have faster response times than color LCDs, leading to better performance for fast-moving or dynamic content.
6.Cost: MONO LCDs are generally less expensive to manufacture than color LCDs, making them a more cost-effective solution for certain applications.
7.Applications: MONO LCDs are commonly used in devices that require simple, low-cost, and efficient display solutions, such as calculators, watches, electronic books (e-readers), and some industrial control panels.
8.Limitations: MONO LCDs are limited to displaying images and text in a single color, which can be a drawback for applications that require more vibrant or complex visual information.
I:Are there any disadvantages to using MONO LCD technology in industrial control panels?
1.Limited Visual Information:
2.Reduced Clarity and Visibility:
3.Compatibility with Graphics-Intensive Applications:
4.Potential Ergonomic Challenges:
